Philips nSIGHT Imaging brings powerful imaging performance to every exam, for new levels of clinical definition and clarity.
Liên hệ chúng tôi
Creating new realities
Philips proprietary nSIGHT Imaging architecture is a totally revolutionary approach to forming ultrasound images without compromise. Unlike conventional systems that form the image line by line, nSIGHT creates images with optimal resolution down to the pixel level.
nSIGHT Imaging incorporates a custom multi-stage precision beamformer along with massive parallel processing. This proprietary architecture captures an enormous amount of acoustic data from each transmit operation and performs digital beam reconstruction along with mathematically optimized focal processing to create real-time images with exceptional resolution and uniformity.
Double the frame rate
Fast and confident survey scanning
Increased diagnostic information during dynamic studies
No compromise approach to imaging so fewer steps are required to optimize performance
Users must choose between framerate and image quality
More than doubles the frame rate without impact to image quality
creates superbly focused images with less transmit operations so you can experience both highly detailed ultrasound images and extraordinary temporal resolution.
Wider range of use with each transducer
Diagnostic confidence across a wide range of patients and applications
Best resolution is limited to transmit focal zone
Corrects focus during beam reconstruction for superb uniformity
achieves superb uniformity through coherent beam reconstruction algorithms that apply mathematical focal correction coefficients continually at all depths of the image.
Resetting penetration limitations
Fewer steps to optimize images
Diagnostic confidence throughout the image
Penetration limitations and poor sensitivity to weak signals
Superb penetration across full range of frequencies
architecture’s ultra-wide dynamic range and unique beam reconstruction reinforces weak tissue signals allowing greater penetration at higher frequencies even on difficult patients.

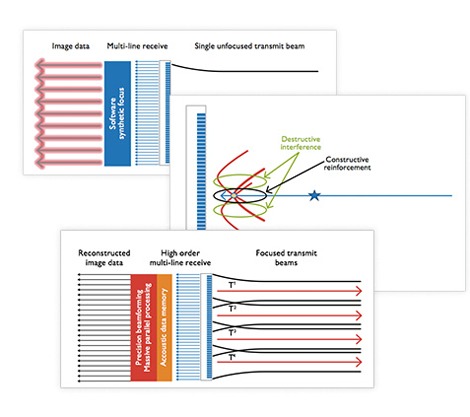

Need more details on nSight imaging? Read the white paper:
Exploring nSIGHT Imaging – a totally new architecture for premium ultrasound
