IntelliVue MP40/MP50 GCX Variable Height Wall Mount
Mounting solution
IntelliVue MP40/MP50 GCX Variable Height Wall Mount
Mounting solution
Learn more about the options available to mount the IntelliVue MP40/50 on a wall.
IntelliVue MP40/50: VHC Variable Height Channel and 12"(300mm) Support Arm
IntelliVue MP40/50: VHC Variable Height Channel and 8"(200mm) Support Arm
Features

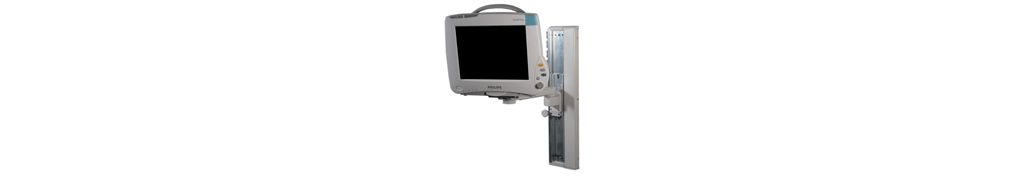

IntelliVue MP40/50: VHC Variable Height Channel and 12"(300mm) Support Arm
The configuration shown requires: GCX P/N: FWM-0001-32; 24"(600mm) Variable Height Channel with 13-18 lb.(80N) counterbalance and 8"(200mm) vertical travel; GCX P/N: AG-0018-21; 12"(300mm) M Series Pivot Arm Kit with Down Post for Flexible Module Server (FMS).

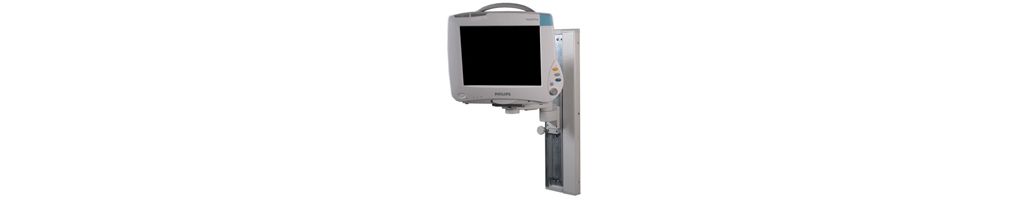

IntelliVue MP40/50: VHC Variable Height Channel and 8"(200mm) Support Arm
The configuration shown requires: GCX P/N: FWM-0001-32; 24"(600mm) Variable Height Channel with 13-18 lb.(80N) counterbalance and 8"(200mm) vertical travel; GCX P/N: AG-0018-22; 8"(200mm) M Series Pivot Arm Kit with Down Post for Flexible Module Server (FMS).
