Microstream CO₂ Extension
Measurement Extension
Microstream CO₂ Extension
Measurement Extension

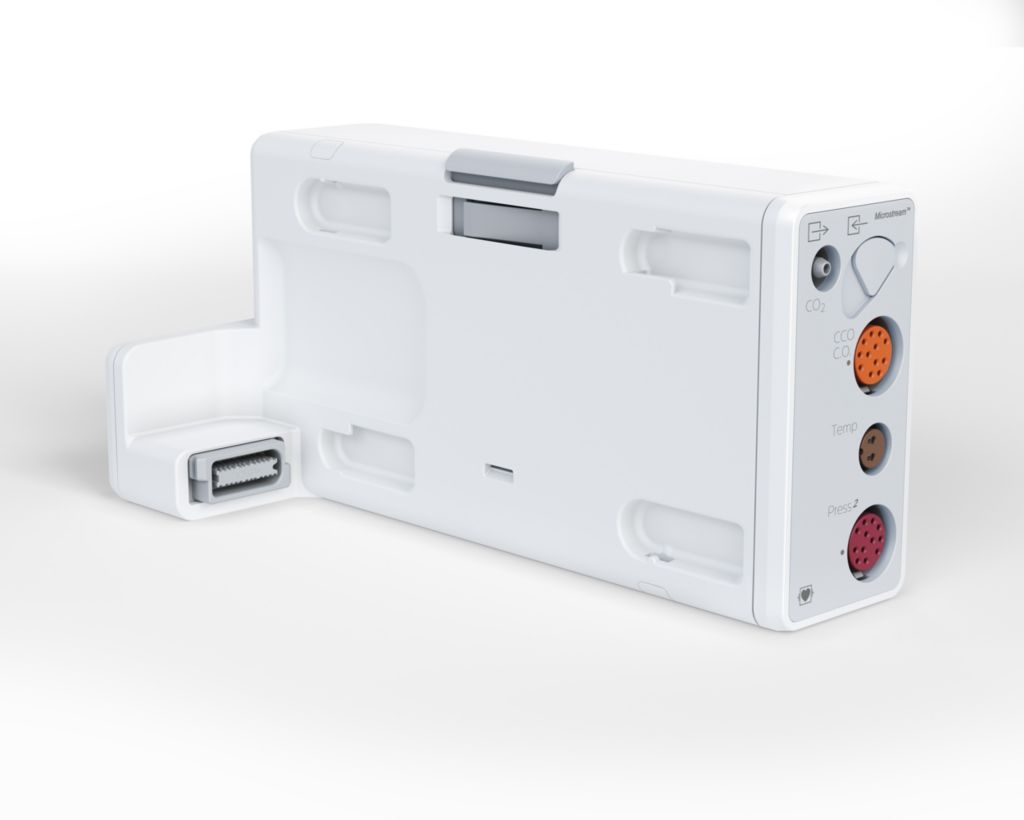

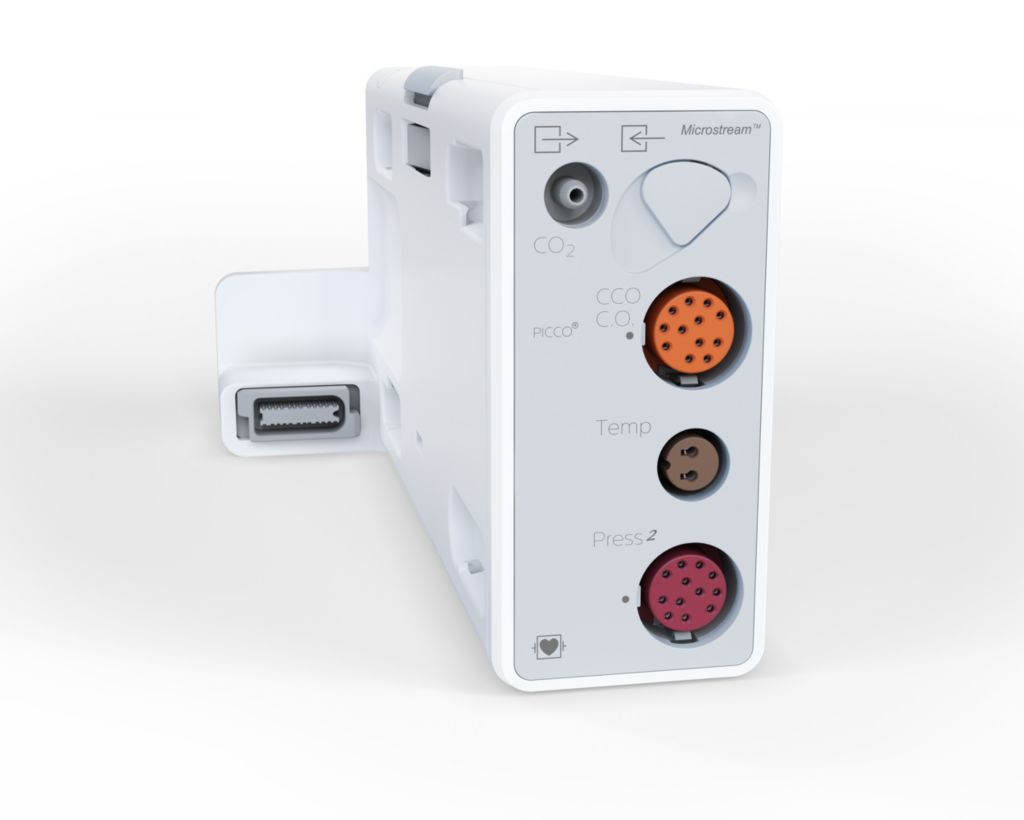

The Microstream CO₂ Extension provides a compact and flexible way to extend the measurement capabilities of host devices (compatible IntelliVue Multi-Measurement Modules and patient monitors). The extension can be attached directly to the host device and sends its measured waves, numerics, and alerts to a connected IntelliVue host monitor.
Features
Power
Extension is powered during tranport when connected to IntelliVu X3 or MX100.
Specifications
- Physical Specifications
- Max Weight
- <0.60 kg/1.3 lb
- Dimensions
- 200 x 97 x 90 mm/7.8 x 3.8 x 3.5 in
- Environmental Specifications
- Operating Temperature Range
- 0–40° C/32–104° F
- Storage Temperature Range
- -20–60° C/-4–140° F
- Operating Humidity Range
- 15–95% RH non-condensing
- Storage Humidity Range
- 5–90% RH non-condensing
- Operating Altitude Range
- -500–3000 m/-1640–9842 ft
- Storage Altitude Range
- -500–4600 m/-1640–15091 ft
- Ingress Protection
- IP32 (when in the horizontal position)
Related products
- The Philips IntelliVue X3 is a compact, dual-purpose, transport patient monitor featuring intuitive smartphone-style operation and offering a scalable set of clinical measurements.
Disclaimer
Microstream is a registered trademark of the Medtronic company.
